Jeco Drum Mantel Clock
(Motor rewind)

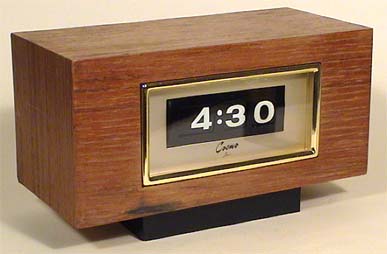

Jeco Drum Clock

This mantel clock is a 1960's attempt at a digital display, before electronic digital displays were commonplace.

The numerals are on 3 plastic drums that are rotated by a small electric motor.
Jeco Drum Clock
Jeco Drum Clock

The clock movement is a conventional balance wheel and pin pallet escapement. Once per minute electric contacts are closed and the spring that powers the clock is rewound by an electric motor which also advances the display by one minute.

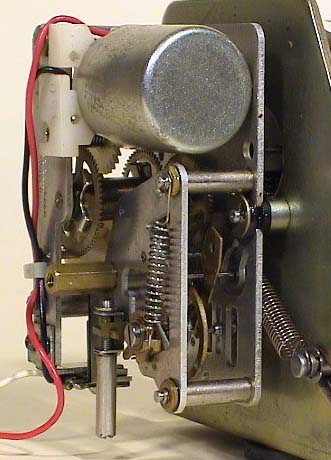

Detail of the movement.
Jeco Drum Clock
Jeco Drum Clock

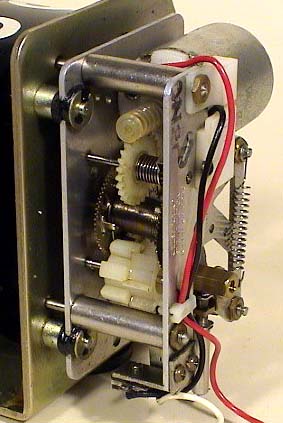

Detail of the rewind mechanism.
Voltage: 1.5v
Battery type: one LR20/MN1300/D size cell
